Solving Docker Registry Authentication for Gitea Actions Runners

gitea kubernetes docker ci-cd homelab

While working on an automated Proxmox restart workflow with Gitea Actions, I ran into a frustrating problem: my runners couldn't pull private Docker images from my Gitea registry without manual intervention. Every time a new pod started and I wanted to use a workflow with my custom runner image, I had to manually run a "docker login" workflow first.

This seemed like it should be a solved problem. After all, Kubernetes has imagePullSecrets for exactly this purpose, right? Well, not quite...

The Setup: Gitea Registry with Custom Runner Images

First, some context on the setup. Gitea has a built-in Docker registry, which I'm using to host custom runner images:

  1. Created a homelab organization in Gitea for shared infrastructure
  2. Created an actions-runner repository under the homelab org (this serves as the package namespace)
  3. Built and pushed a custom runner image with homelab-specific tools:
    docker build -t gitea.home.jasongodson.com/homelab/actions-runner:latest .
docker push gitea.home.jasongodson.com/homelab/actions-runner:latest

The image is hosted at: https://gitea.home.jasongodson.com/homelab/-/packages/container/actions-runner/

This lets me customize the runner environment with tools like kubectl, helm, ansible, and other utilities specific to my homelab workflows.

The Problem: Multiple Docker Contexts

My Gitea Actions runners use two different labels:

  • homelab-latest:docker://gitea.home.jasongodson.com/homelab/actions-runner:latest - Runs workflows in a custom Docker image
  • host-docker:host - Runs workflows directly on the host's Docker daemon. I use this for bulding images.

When a workflow tried to use the homelab-latest label, I'd get this error:

Error response from daemon: unauthorized: reqPackageAccess

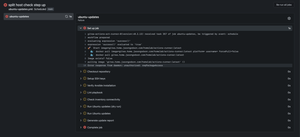

Gitea runner failure

The runner was deployed as a Kubernetes StatefulSet with a Docker-in-Docker (dind) sidecar container. I initially thought adding an imagePullSecret to the pod spec should cover this.

Spoiler: That didn't work.

Understanding the Architecture

To understand why, let's look at what's actually happening:

Kubernetes Pod: gitea-actions-act-runner-0
├── act-runner container (executes workflows)
│   ├── Connects to Docker via TCP: tcp://127.0.0.1:2376
│   └── Uses Docker client library to pull images
└── dind container (Docker-in-Docker daemon)
    └── Runs dockerd, listens on tcp://0.0.0.0:2376

The act-runner container doesn't have Docker installed - it uses a Docker client library to connect to the dind container's Docker daemon via TCP with TLS authentication.

Here's where it gets interesting:

  • Kubernetes imagePullSecrets only help Kubernetes pull the runner pod's container image
  • They do nothing for images that act-runner pulls via the Docker API when executing workflows
  • The Docker client library reads credentials from ~/.docker/config.json in the act-runner container
  • But we never created that file!

Failed Attempt #1: imagePullSecrets

spec:
  imagePullSecrets:
    - name: gitea-registry-creds

Result: ❌ Didn't help. Workflows still couldn't pull the homelab-latest image.

Why it failed: imagePullSecrets only helps Kubernetes pull the pod's container images, not images that the workflow executor pulls via the Docker API.

Failed Attempt #2: Mounting Docker Config

I tried mounting a pre-configured ~/.docker/config.json into the act-runner container:

volumeMounts:
  - name: docker-config
    mountPath: /root/.docker

Result: ❌ Still didn't work for host-docker mode.

Why it failed: The host-docker label makes workflows run on the host's Docker daemon, not the container's Docker daemon. Config mounts only affect the container filesystem.

Failed Attempt #3: Helm Chart Patching with Lifecycle Hook

I tried patching the Helm chart to inject a postStart lifecycle hook that would run docker login when the container starts:

lifecycle:
  postStart:
    exec:
      command:
        - /bin/sh
        - -c
        - echo "$REGISTRY_PASSWORD" | docker login $REGISTRY_URL -u $REGISTRY_USERNAME --password-stdin

Result: ❌ Pods went into CrashLoopBackOff with FailedPostStartHook.

Why it failed: While kubectl describe pod showed the hook failed, there was no way to see the actual error output from the docker login command. postStart hooks are blocking - if they fail or timeout, Kubernetes kills the container. The Docker daemon timing during startup is unpredictable, which likely caused intermittent failures, but without access to the hook's stdout/stderr, debugging was nearly impossible. Additionally, maintaining Helm chart patches adds complexity to deployments and chart updates.

The Solution: CronJob-Based Authentication

After these failed attempts, I realized I needed a solution that:

  1. Creates the Docker config in the act-runner container (where the Docker client library runs)
  2. Doesn't block pod startup
  3. Automatically refreshes credentials periodically
  4. Can recover from failures
  5. Doesn't require modifying the Helm chart

Enter the CronJob approach:

apiVersion: batch/v1
kind: CronJob
metadata:
  name: gitea-runner-docker-login
  namespace: gitea
spec:
  schedule: "0 * * * *"  # Every hour
  jobTemplate:
    spec:
      template:
        spec:
          serviceAccountName: gitea-runner-docker-login
          containers:
          - name: docker-login
            image: alpine/k8s:1.32.9
            command:
              - /bin/sh
              - -c
              - |
                echo "🔐 Starting Docker login refresh..."

                PODS=$(kubectl get pods -n gitea \
                  -l app.kubernetes.io/name=actions-act-runner \
                  -o jsonpath='{.items[*].metadata.name}')

                for POD in $PODS; do
                  # Create .docker config in act-runner container
                  kubectl exec -n gitea "$POD" -c act-runner -- sh -c \
                    "mkdir -p /root/.docker && \
                     echo '{\"auths\":{\"'$REGISTRY_URL'\":{\"auth\":\"'$(echo -n "$REGISTRY_USERNAME:$REGISTRY_PASSWORD" | base64)'\"}} }' \
                     > /root/.docker/config.json"
                done
            env:
              - name: REGISTRY_URL
                value: "gitea.home.jasongodson.com"
              - name: REGISTRY_USERNAME
                valueFrom:
                  secretKeyRef:
                    name: gitea-docker-registry-creds
                    key: username
              - name: REGISTRY_PASSWORD
                valueFrom:
                  secretKeyRef:
                    name: gitea-docker-registry-creds
                    key: password

This approach:

  • ✅ Runs every hour to keep credentials fresh
  • ✅ Creates the config file in the act-runner container (where the Docker client library reads it)
  • ✅ Doesn't block pod startup
  • ✅ Self-healing (retries every hour if it fails)
  • ✅ Uses RBAC to securely exec into pods

RBAC Configuration

The CronJob needs permissions to list pods and exec into them:

---
apiVersion: v1
kind: ServiceAccount
metadata:
  name: gitea-runner-docker-login
  namespace: gitea
---
apiVersion: rbac.authorization.k8s.io/v1
kind: Role
metadata:
  name: gitea-runner-docker-login
  namespace: gitea
rules:
  - apiGroups: [""]
    resources: ["pods"]
    verbs: ["get", "list"]
  - apiGroups: [""]
    resources: ["pods/exec"]
    verbs: ["create"]
---
apiVersion: rbac.authorization.k8s.io/v1
kind: RoleBinding
metadata:
  name: gitea-runner-docker-login
  namespace: gitea
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: Role
  name: gitea-runner-docker-login
subjects:
  - kind: ServiceAccount
    name: gitea-runner-docker-login
    namespace: gitea

Integration with Deployment Script

I integrated the CronJob into my existing deploy-runners.sh script:

deploy_docker_login_cronjob() {
    log_info "Deploying Docker login CronJob..."

    if [ -f "$SCRIPT_DIR/docker-login-cronjob.yaml" ]; then
        kubectl apply -f "$SCRIPT_DIR/docker-login-cronjob.yaml"
        log_success "Docker login CronJob deployed"
    else
        log_warning "docker-login-cronjob.yaml not found, skipping..."
    fi
}

main() {
    check_prerequisites
    ensure_namespace
    update_helm_chart
    deploy_release
    deploy_docker_login_cronjob  # ← New step
    show_status
    cleanup
}

Now when I deploy the runners, the CronJob is automatically created and configured.

Testing the Solution

To test manually before waiting for the hourly schedule:

# Create a manual job from the CronJob
kubectl create job -n gitea test-login \
  --from=cronjob/gitea-runner-docker-login

# Watch the logs
kubectl logs -n gitea -l job-name=test-login -f

Output:

🔐 Starting Docker login refresh for all runner pods...
📦 Refreshing Docker login on pod: gitea-actions-act-runner-0
✅ Successfully configured Docker auth for gitea-actions-act-runner-0
📦 Refreshing Docker login on pod: gitea-actions-act-runner-1
✅ Successfully configured Docker auth for gitea-actions-act-runner-1
🎉 Docker login refresh complete!

Verify the config was created:

kubectl exec -n gitea gitea-actions-act-runner-0 -c act-runner -- \
  cat /root/.docker/config.json

Result:

{
  "auths": {
    "gitea.home.jasongodson.com": {
      "auth": "..."
    }
  }
}

The Workflow Now Works!

After deploying the CronJob, my workflows can now pull private images automatically:

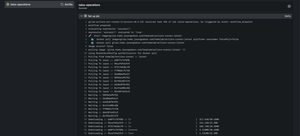

Gitea runner failure

No more manual docker-login workflow needed!

Key Takeaways

  1. imagePullSecrets aren't a silver bullet - They only help Kubernetes pull pod images, not images that your application pulls via the Docker API

  2. Understand your architecture - In my case, act-runner uses a Docker client library that reads from ~/.docker/config.json. The solution had to create that file in the act-runner container, not the dind container where dockerd runs. Putting credentials in the dind container didn't help because the Docker client runs in act-runner.

  3. Lifecycle hooks are difficult to debug - postStart hooks block pod startup and can cause crashes if they fail, but Kubernetes doesn't capture their stdout/stderr. You'll see that the hook failed in events, but not why. This makes debugging nearly impossible for operations that depend on timing or external services.

  4. CronJobs are resilient - Running authentication as a separate, periodic job is more reliable than tying it to container lifecycle. It's self-healing and doesn't block startup.

  5. kubectl exec is powerful - Sometimes the best solution is a simple script that execs into containers and does what needs to be done.

Files and Configuration

You can find all the configuration files in my homelab repository:

Update (October 25, 2025)

The Proxmox automated restart post is up! Check out Automating Proxmox Host Restarts with Gitea Actions for the full story.

Have you encountered similar issues with Docker authentication in action runners? Let me know how you solved it - I'm always interested in learning about alternative approaches!
